ME Series
Roll-to-Roll Fabric Embossing
Industrial Fabric Embossing Calender

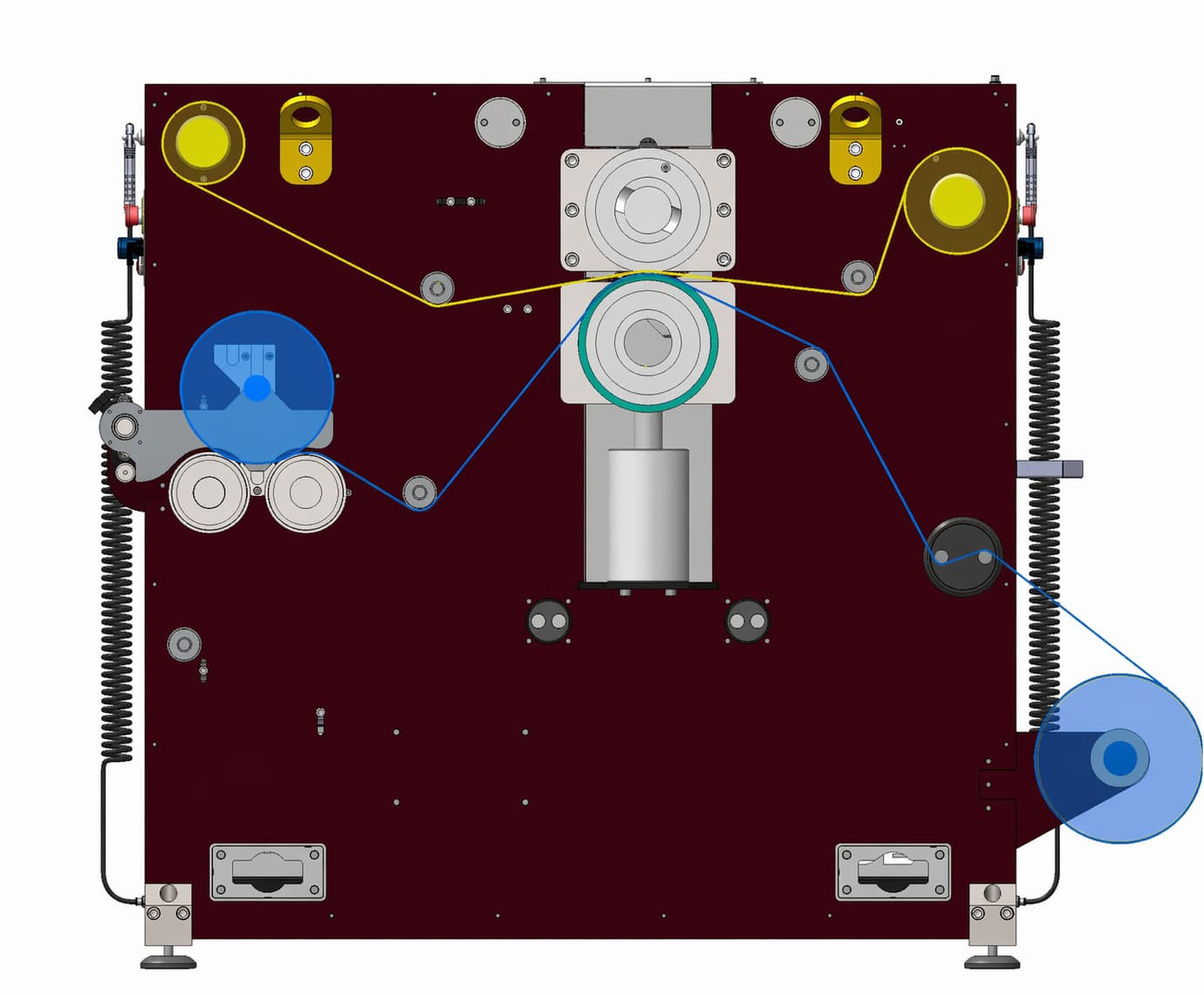

The ME Series is an industrial calender family that applies permanent embossed patterns (3D relief texture) to fabric. A patterned roller transfers its engraved surface to the fabric under heat and pressure, leaving a durable three-dimensional design. Applications span home textile (curtains, cushion covers, quilts, tablecloths), fashion fabrics, furniture upholstery, automotive interior trim and fashion accessories. Custom rollers can be engraved to any pattern the customer specifies — geometric, natural, logo, technical. A plain roller option is available too, so the same machine serves different products through interchangeable rollers.
Plain Cylinder
Smooth ground cylinder. Preferred for flat printing or fixation work.
Textured Cylinder
Customer design engraved onto the cylinder by CNC. A separate cylinder is made for each pattern.
Anti-Static Bar
Ionises and neutralises built-up static. Reduces dust adhesion on thin fabrics and plastic wrapping.
Air Shaft
Pneumatic shaft. Inflates and deflates so the roll grips the mandrel and changes quickly.
ME-190W-350D· Ø350mm (13.78″) · 1900mm (74.80″)+
- Supply voltage
- 380 - 415 VAC
- Frequency
- 50 / 60 Hz
- Phases
- 3 Phase
- Electrical Connection Type
- 3PH + N + PE
- Total installed power
- 26 kW
- Total Current
- 39,5 A
- Resistance Power
- 23 kW
- Resistance Current
- 35 A
- Main Line Cable Section
- 5 × 6 mm²
- Emergency stop
- 4 emergency stop buttons + safety rope
- Warranty
- 6000 h / 1 Year
- Heating Line Protection Switch
- Yes
- Over-Temperature Protection
- Yes (240 °C)
- Contactor Failure Protection
- Yes
- Audible Alarm
- Buzzer
- Visual Alarm
- Yellow Warning Lamp
- Phase Protection Relay
- Yes
- Fuse Protection
- Yes
- Grounding Protection
- Yes
- Heating system
- Oil-Heated Drum
- Max operating temperature
- 230 °C
- Average Heating Time
- 60 - 90 min
- Average Cooling Time
- 180 - 300 min
- Air Pressure
- 5 - 8 BAR
- Production Speed Range
- 0.0 - 9.2 m/min
- Electrical System
- Industrial control circuit
- Speed control
- AC Inverter
- Temperature Control System
- Digital Thermostat
- Temperature Sensor
- Thermocouple
- PLC Safety Monitoring
- Yes
- Sensor Failure Detection
- Yes
- Sensor Cable Break Protection
- Yes
- Net Weight
- 2400 kg
- Gross Weight
- 2750 kg
- Package Dimensions (W × L × H)
- 3300 × 2000 × 1900 mm
- Drum diameter
- 350 mm
- Drum face width
- 1900 mm
- Effective working width
- 1800 mm
ME-260W-350D· Ø350mm (13.78″) · 2600mm (102.36″)+
- Supply voltage
- 380 - 415 VAC
- Frequency
- 50 / 60 Hz
- Phases
- 3 Phase
- Electrical Connection Type
- 3PH + N + PE (E)
- Total installed power
- 34 kW
- Total Current
- 51,7 A
- Resistance Power
- 30 kW
- Resistance Current
- 45,6 A
- Main Line Cable Section
- 4 × 10 + 6 mm²
- Emergency stop
- 4 emergency stop buttons + safety rope
- Warranty
- 6000 h / 1 Year
- Heating Line Protection Switch
- Yes
- Over-Temperature Protection
- Yes (240 °C)
- Contactor Failure Protection
- Yes
- Audible Alarm
- Buzzer
- Visual Alarm
- Yellow Warning Lamp
- Phase Protection Relay
- Yes
- Fuse Protection
- Yes
- Grounding Protection
- Yes
- Heating system
- Oil-Heated Drum
- Max operating temperature
- 230 °C
- Average Heating Time
- 60 - 90 min
- Average Cooling Time
- 180 - 300 min
- Air Pressure
- 5 - 8 BAR
- Electrical System
- Industrial control circuit
- Speed control
- AC Inverter
- Temperature Control System
- Digital Thermostat
- Temperature Sensor
- Thermocouple
- PLC Safety Monitoring
- Yes
- Sensor Failure Detection
- Yes
- Sensor Cable Break Protection
- Yes
- Drum diameter
- 350 mm
- Drum face width
- 2600 mm
- Effective working width
- 2500 mm
